I. Areas of application:
Stamping industry, hardware, kitchen equipment, building decoration board, medical equipment, producing the lids, canning,producing screen mesh, LED lamps ,electric motor ,solar water heater, auto parts .....etc.

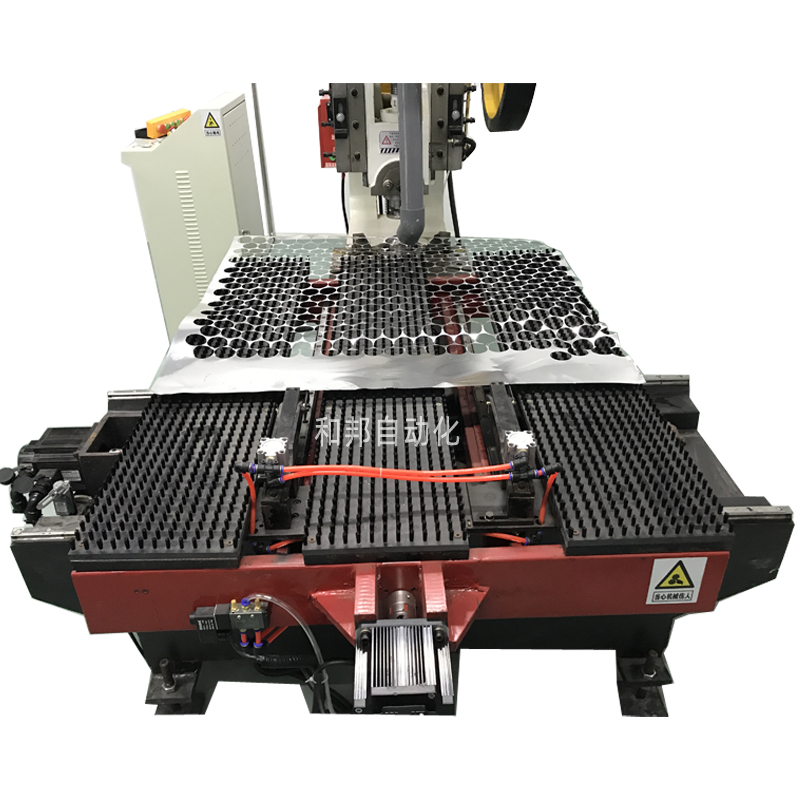

Small CNC feeder can be used for 1m*1m, 1.5m*1m, 1.5m*1m sheet metal stamping, widely used in bottle cap, can cap, screw cap, chemical capping machine all kinds of tinplate cover, screen, bearing parts, auto parts and other industries.Main accessories such as servo motor, ball screw are all imported brands.
1, Servo motor or hybrid stepping motor drive
2. Feed accuracy ±0.10mm
3. The highest feed accuracy of the servo motor is 20m~30m/min
4, working voltage 220v rated power 800w~2kw
The CNC feeder produced by our company is applicable to plate stamping. According to the market demand, a new type of product independently researched and developed adopts imported high-precision roller
Pearl screw, linear guide, servo motor, touch screen LCD display, PLC control software, with CAD graphics direct program editing, modification, storage and other functions
Can, realize the whole sheet of material on the machine, automatic discharge, automatic feeding, automatic stamping, especially suitable for processing precision requirements of higher products, overcome the punch
Large vibration, unstable precision, short die life and other defects.Can maximize the use of raw materials, improve production efficiency, the realization of artificial off - machine operation
To ensure production safety is the preferred equipment for modern stamping industry to carry out technical transformation and improve economic benefits.
1. Independent research and development of control system to ensure the stability of stamping.According to customer requirements, add functions.
2. The remote control function is added in the program. By operating the remote control box button, remote control can be realized and manual operation is more convenient.
3, from the consideration of saving stamping materials, the system has set a variety of stamping methods (cross arrangement, gap compensation, no cross arrangement, no cross mixing
Automatic arrangement, manual arrangement, interval stamping, automatic time setting), can be independently selected according to the needs of the process.
Special pneumatic clamping pliers, according to specific needs to achieve the function of clamping and avoiding
5, can be equipped with ordinary punch.According to the customer's existing general punch free transformation, with CNC feeder stamping effect is ideal, waste stable treatment.
Save money on deep throat punch.
Specification
|
型号 item no |
电机electric motor |
控制 control |
丝杠 leading screw |
夹钳 Clamp |
最大加工maximum（mm） |
外形（mm） Shape(mm) |
|
HBSL-2000B |
伺服电机servo motor (*2.0kwy1.5kw)
|
PLC/PC工控机 PLC/PC Industrial Personal Computer |
滚珠丝杠 Ball screw |
气动夹钳 (尖嘴/宽嘴) |
2000*1250 |
2800*1750*880 |
|
HBSL-2500B |
伺服电机servo motor (*2.0kwy1.5kw)
|
PLC/PC工控机 PLC/PC Industrial Personal Computer |
滚珠丝杠 Ball screw |
气动夹钳 (尖嘴/宽嘴) |
2500*1250 |
3300*1750*920 |
|
HBSL-3000B |
伺服电机servo motor (*2.0kwy1.5kw)
|
PLC/PC工控机 PLC/PC Industrial Personal Computer |
滚珠丝杠 Ball screw |
气动夹钳 (尖嘴/宽嘴) |
3000*1250 |
3900*1750*920 |
|
HBSL-3500B |
伺服电机servo motor (*3.0kwy1.5kw)
|
PLC/PC工控机 PLC/PC Industrial Personal Computer |
滚珠丝杠 Ball screw |
气动夹钳 (尖嘴/宽嘴) |
3500*1500 |
4400*1950*960 |
|
HBSL-4000B |
伺服电机servo motor (*4.0kwy1.5kw)
|
PLC/PC工控机 PLC/PC Industrial Personal Computer |
滚珠丝杠 Ball screw |
气动夹钳 (尖嘴/宽嘴) |
4000*1500 |
5000*1950*960 |
